OA 500/500Series

产品结构 Structure

优质冷轧钢板拉伸后点焊成形，外表经磷化后进行喷塑处理，内腔填充发泡水泥，四角带有角锁孔。最底板面高度可为5cm，地板四周可根据使用要求任意添加线槽，布线更具灵活性，可以将强、弱电分开隔离，便于检修，节约大楼空间，更体现出地板的架空功能性。

OA-500 steel raised floor is made of good quality deep stretch coil steel,which is punched,spot-welded and coated by epoxy powder.The panel is filled with foamed cement inside.Comparing to traditional raised floor,trunking can be added to the floor freely.More flexible wiring which can segrate the strong and weak current,simplfy the equipment maintainance,save the building space and it fully reflects raised floor functionality.

特点 Feature

全钢组件，机械性能高，承载能力强，防火性能好;

自身重量轻，减轻楼面荷重；

表面静电喷塑、柔光、耐磨、防腐蚀；

尺寸精度高，互换性能好，组装灵活，维修方便；

表面铺设方块地毯，美观大方，装饰性强。

Constituted by all-steel and good loading capacity,excellent fire-proof;

Less weight and less load to sub-floor;

The panal surface is coated with epoxy powder, and it is gentle glow,anti-weear and anticorrosion;

High dimension accuracy,excellent inter change ability,easy to install, disassembly and maintain;;

The carpet can be put on the surface of bare panel, which creates an excellent appearance.

应用 Application

写字楼及智能化办公环境，OA教室、防尘防水及需要架空的场所。

The intelligent raised floor of OA is fit for office building.OA intelligent building classroom of places need to be raised, dust-proof of waterproof area.

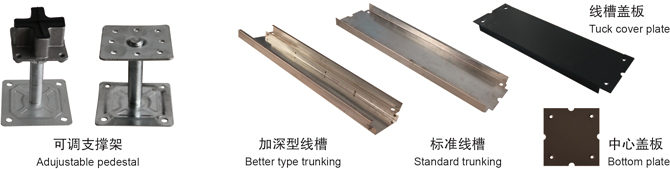

支架-线槽-盖板 Pedestal-Trunking-Plate

----------------------------------------------------------------------------------------------------------------------------------------------------------------

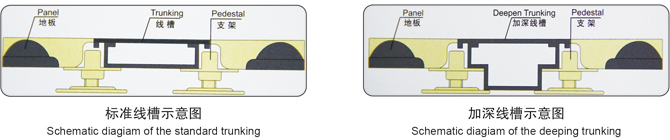

线槽示意图 Schematic Of Trunking

----------------------------------------------------------------------------------------------------------------------------------------------------------------

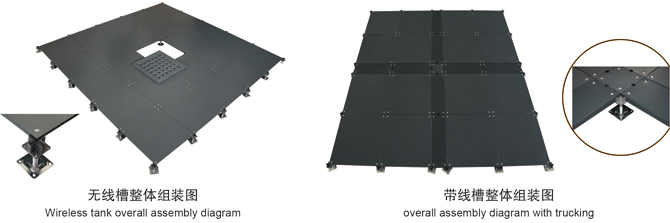

组装示意图 Assembly Schematic

----------------------------------------------------------------------------------------------------------------------------------------------------------------

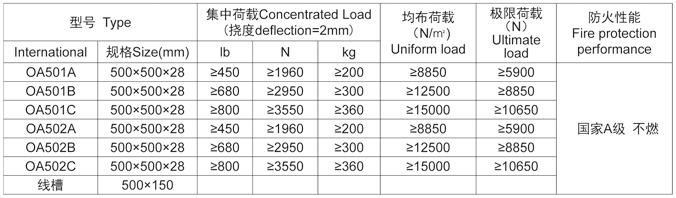

OA全钢网络地板技术参数（OA501/502系列Series）
