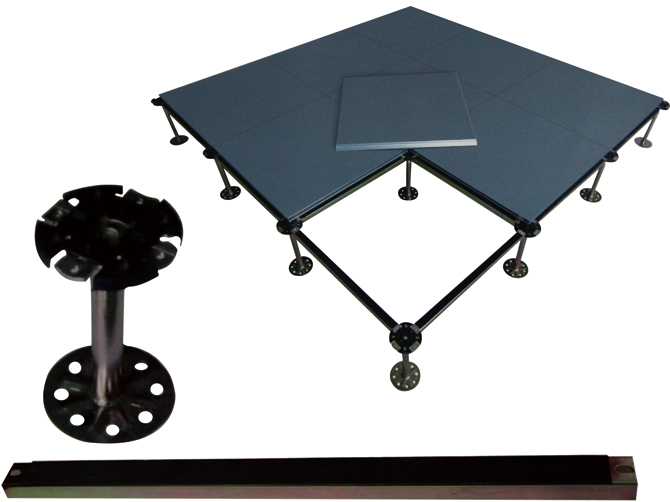

产品结构 Structure

1、优质硫酸钙基、刨花板基、六面包镀锌钢板、四角带/不带角锁孔，表面可铺设地毯、PVC或其它材料；

2、支架模压成型，上托带塑胶垫，完成面高度为70mm-1500mm，可采用横梁四周支撑式结构或支架四角支撑式结构。

1、Panel-Galvanized steel plate encased the calcium sulphate or wood core in faces, steel sealed edge, with or without coner lock hole in four corners, widely brand top tiles could be carpet, HPL PVC tiles or other tiles as you like.

2、Accessories-die casting steel structure pedestal plastic gasket on top, height could be 70mm~1500mm, with or without square tube stringer steady connect the system.

功能特点 Characteristics

1、六面包镀锌钢板，密封性能好，防水；

2、尺寸精度高，超强承重耐压；

3、支架高度可以调节，组装灵活，布线量大，互换性好；

4、表面可铺设各种贴膜，美观大方；

5、自身重量轻，超强承载压力，21世纪的卓越产品；

6、重复利用率高，拆装方便，节约成本，使用寿命长。

1、Full galvanized steel encased the wood core, very good sealing and water-proof.

2、High dimensional precision, strong loading ability and shockproof.

3、Adjustable height for pedestal, assembly agility, large wire, good exchangeability.

4、Elegant appearance for paving widely brand top tiles.

5、Light weight, high loading capacity, excellent raised flooring in 21th.

6、High recycled, convenient removing, saving cost, long performance life.

应用Application

广泛适用于各种电脑机房，通讯机房，控制室，电力室，高级写字楼

Wide range of the application all kinds of computer room, network service engine room, control room, montoring cabin, top grade office.

----------------------------------------------------------------------------------------------------------------------------------------------------------------

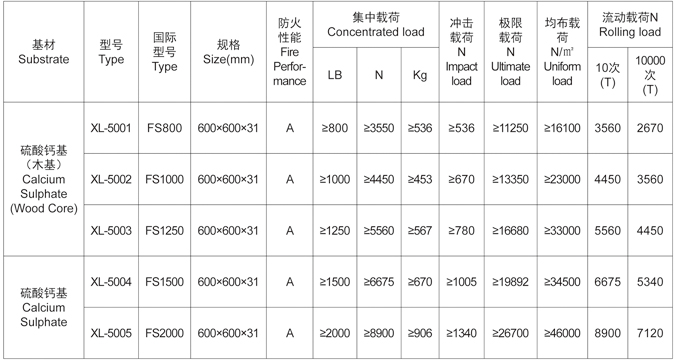

硫酸钙基木基包纲地板技术参数
