更有效地节省楼层高度，最低高度仅为35mm，地板高度调节范围为35-150mm；每块盖板都有出线口，随意出线；地插座与边盖板可任意互换，不用切割地板。

Product Features:Save the room space,the lowest is 35mm,adjustment height 35-150mm.Every cover plate with cable hole,easy wiring.Cover plate&socket interchange any place.

----------------------------------------------------------------------------------------------------------------------------------------------------------------

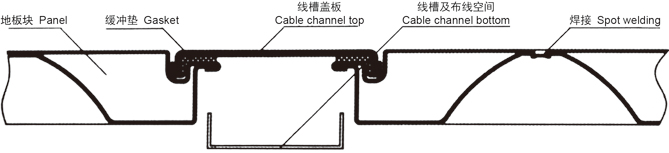

连接示意图 Connection diagram

----------------------------------------------------------------------------------------------------------------------------------------------------------------

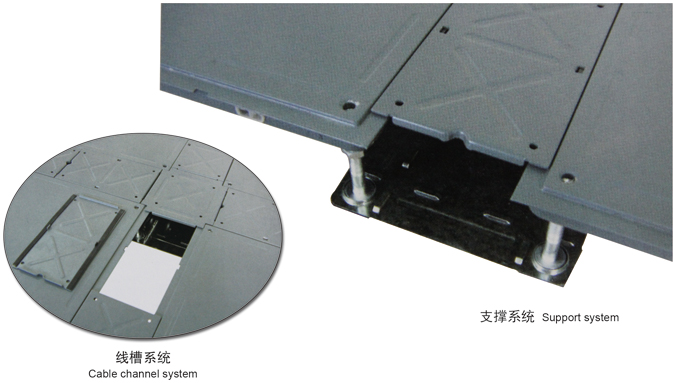

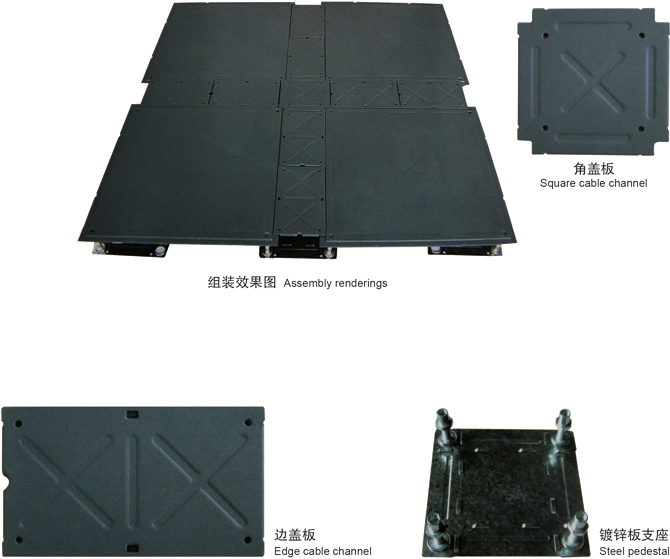

组装示意图 Assembly Schematic

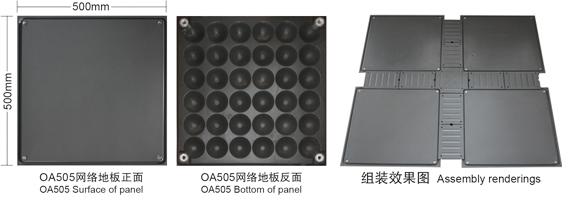

OA-500铆钉型扣槽地板

产品介绍 Introduction

该产品系统摆脱了传统网络地板高度限制，最低高度仅为35mm。

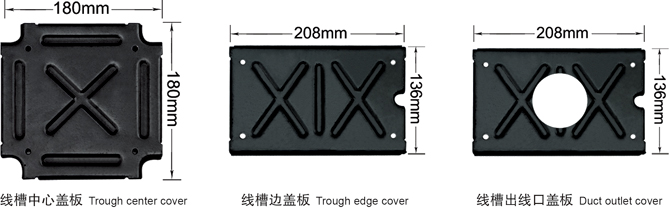

主要组件有：地板块、边盖板、中心盖板、中心角底板。

可选配件有：地插座、下线槽、出线口。

地板调节高度范围为35-150mm，考虑与公用部位接口，最佳铺设高度为50mm，有效节省楼层空间高度。

灵活方便的布线功能；模块化线槽拼装方便，地插座与边盖板任意互换，不可切割地板；每块盖板上没有出线口，可随意出线。

This product system from the traditional network floor height restrictions, which minimum height for 35mm only.

Main components:land plate,side apron,center ZhongXinJiao apron,floor.

Optional accessories are:to plug,referral chamfer,outlet.

Floor reglation heighe range for 35-150mm,consider and public site interface, best laid the height is 50,effectively save the floor space height.

Agile and convenient wiring function;Modular trough assembles convenient, with edge to socket,don’t cut any interchangeable cover the floor; Each cover plate outlet,with optional goes.

产品特色 Feature
