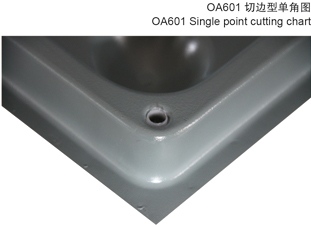

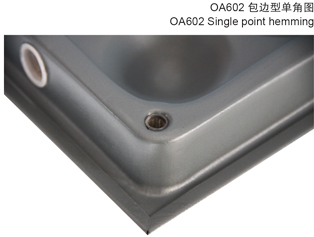

OA 600切边型/包边型

产品结构 Structure

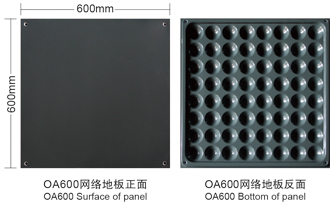

全钢组成，四角独立支撑结构，地板地面采用ST14拉伸板，表面选用SPCC硬质钢板，地板表面经过导电环氧树脂静电喷塑处理，内腔发泡水泥填充，死角冲角锁孔。支座采用镀锌或铸铝模压成型，丝杆高度可任意调节，地板四周成型有切边与包边两种。

Full steel,independent four corners support structure.Lower plane is ST14 stretched plate, surface plane is SPCC hand stell painted with conductive antistatic resin,foaming cement in filled,lock hole in four corners.pedestal is pressured forming with galvanized or cast aluminum,lead screw can be adjusted at discretion.

特点 Feature

四角支撑，支座高度可调节，布线量大，互换性好，维修方便；

重复利用率高，拆装方便，节约办公成本，使用寿命长。

High dimensional precision,newly patent”cross strengthening rib” structure, strong load ability and chockproof.goodexchangeability;

Highrecycled, concenient removing,saving cost,long perfor mance life.

应用 Application

适用于5A级智能化楼宇及有架空要求、网络综合布线的场所，更适合于旧办公楼综合布线的地面改造，表面铺设地毯。

5A class office building and occasions which require overhead and large wires.Even eligible for remaking surface for the wires in old office building.

----------------------------------------------------------------------------------------------------------------------------------------------------------------

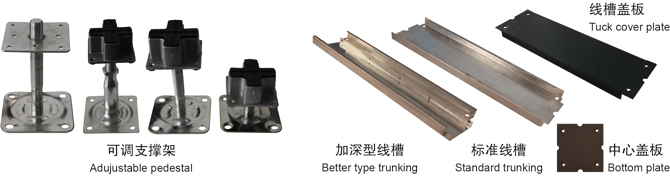

支架-线槽-盖板 Pedestal-Trunking-Plate

----------------------------------------------------------------------------------------------------------------------------------------------------------------

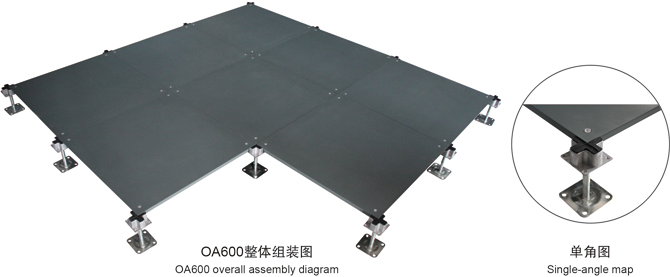

组装示意图 Assembly Schematic

----------------------------------------------------------------------------------------------------------------------------------------------------------------

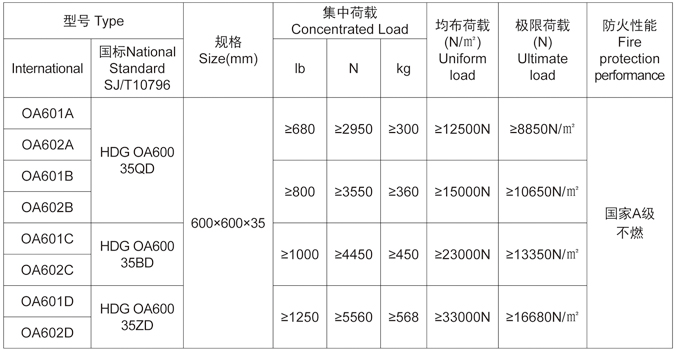

OA全钢网络地板技术参数（OA601/602系列Series）
